48V Magnetic Track
Lighting System
Topsund 48V magnetic track lighting is a modular low-voltage lighting system for architectural interiors, villas, apartments, showrooms, and high-end residential projects. The system combines M20 track profiles, power and connection components, and magnetic lighting modules including spotlights, zoom spots, linear modules, dots modules, wallwashers, and pendants. Smart control options such as DALI, Zigbee, Casambi, and 0-10V can be planned around the selected module, driver, wiring method, gateway, and project layout.
Overview
48V Magnetic Track
Lighting System Overview
A 48V magnetic track lighting system is more than a single lighting fixture. It is a complete low-voltage lighting platform that combines track profiles, power supplies, magnetic light modules, connectors, and smart control options into one flexible system. Designers and integrators can use the same track to arrange accent lighting, general lighting, wall washing, task lighting, and decorative pendant lighting according to different room layouts and project requirements.
Low-Voltage Safety
48V low-voltage design makes the system suitable for residential interiors, villas, apartments, and smart home projects.
Modular Lighting Flexibility
Spotlights, linear modules, wallwashers, grille lights, and pendants can be combined on one magnetic track system.
Smart Control Compatibility
DALI-2, KNX gateway integration, Casambi, Zigbee, and other smart control options can be configured depending on driver and gateway selection.
48V MAGNETIC TRACK BASICS
What Is a 48V Magnetic
Track Lighting System?

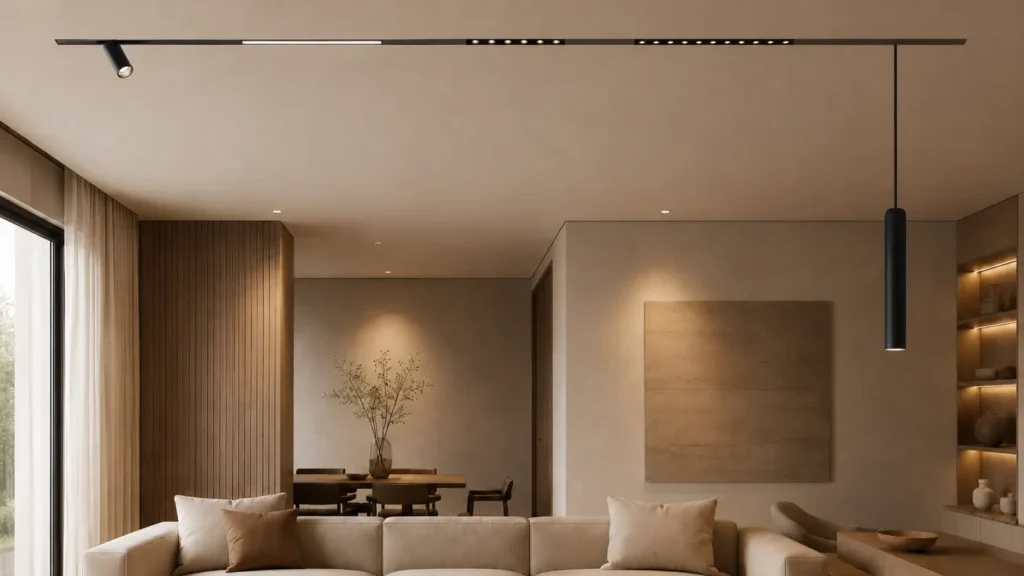

A 48V magnetic track lighting system is a low-voltage architectural lighting system that uses a magnetic track as both the mounting structure and the power distribution channel. Different lighting modules can be placed, moved, or replaced along the track without complex rewiring.
Compared with traditional fixed downlights or standard track lighting, a 48V magnetic track system gives designers and integrators more flexibility during project planning, installation, and future adjustment. It allows spotlights, linear lights, grille lights, wallwashers, and pendant modules to work together within one clean ceiling system.
For residential villas, apartments, showrooms, and smart home projects, this type of lighting system helps create a cleaner ceiling appearance, flexible lighting layers, and easier integration with smart control systems such as DALI, KNX gateway integration, Casambi, and Zigbee, depending on driver and gateway selection..
Low-Voltage Track Platform
The 48V track provides a safe low-voltage power structure for different magnetic lighting modules.
Magnetic Module Installation
Lighting modules can be attached, repositioned, or replaced on the track with flexible magnetic mounting.
One System, Multiple Lighting Layers
Accent lighting, general lighting, wall washing, and decorative lighting can be combined in one track system.
In short, 48V magnetic track lighting is not a single fixture.
It is a modular lighting platform for flexible ceiling design, layered illumination, and smart lighting control.

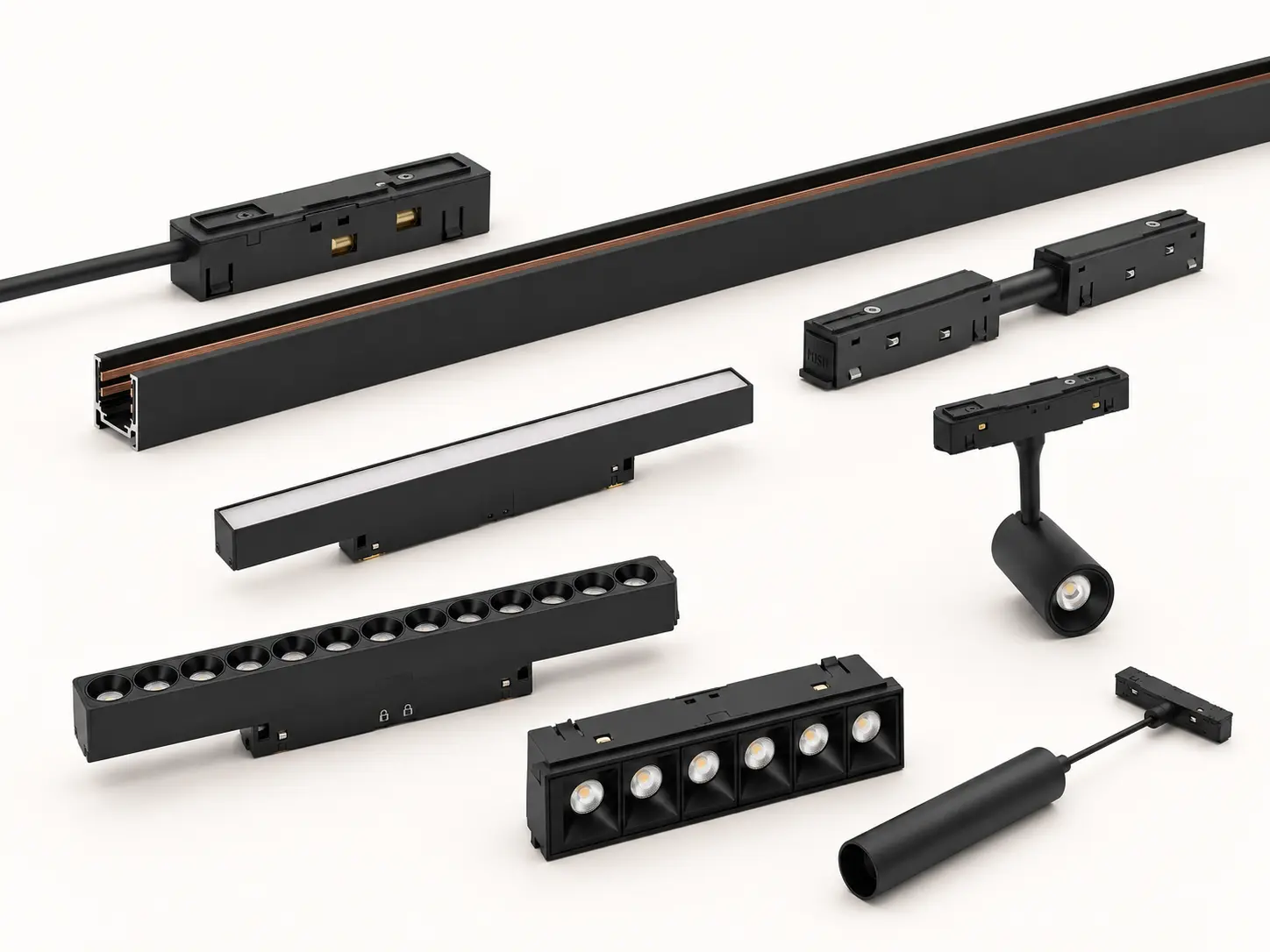

SYSTEM COMPONENTS
Magnetic Track System
Components
A complete 48V magnetic track lighting system is built from several coordinated components, including the track profile, power supply, power feed, connectors, lighting modules, and optional smart control devices. Each component affects installation flexibility, lighting performance, control compatibility, and the final ceiling appearance.
Track Profile
The main structure for mounting lighting modules and distributing 48V low-voltage power.
Power Supply
Converts mains voltage into stable 48V DC power for the magnetic track system.
Power Feed
Connects the power supply to the magnetic track and delivers power into the system.
Connectors
Used to join track sections and support straight, L-shape, T-shape, or customized layouts.
Lighting Modules
Includes spotlights, linear lights, grille lights, wallwashers, and pendant modules.
Smart Control Options
Supports project-based control solutions such as DALI-2, KNX integration, Casambi, and Zigbee.
A 48V Magnetic Track System Is Not Only A Track And A Lamp.
It is a coordinated lighting platform where power, structure, modules, connectors, and control options work together.
WHY TOPSUND
Why Choose Topsund for
48V Magnetic Track Lighting
Topsund supports 48V magnetic track lighting projects with complete system options, smart control compatibility, customization, sample testing, and project-based technical support.
We work with lighting designers, smart home integrators, contractors, distributors, and residential project teams who need reliable architectural lighting solutions for villas, apartments, showrooms, hotels, and commercial interiors.
From track profiles and lighting modules to DALI-2, KNX gateway integration, Casambi, and Zigbee control options, Topsund helps customers build a magnetic lighting system that fits both the ceiling design and the project control requirements.
Complete 48V Magnetic Track System
Track profiles, connectors, power feeds, spotlights, linear modules, wallwashers, grille lights, and pendant modules can be supplied as a complete system.
Smart Control Compatibility
Support for DALI-2, KNX gateway integration, Casambi wireless control, Zigbee smart lighting, and project-based control solutions.
Customization Support
Track length, finish, module selection, beam angle, color temperature, dimming method, and control configuration can be adjusted according to project needs.
Sample Testing Available
Samples can be provided for lighting designers, integrators, distributors, and contractors to test product quality, installation logic, and control compatibility.
Project-Based Technical Support
Topsund can support product selection, installation planning, lighting module matching, control system recommendations, and project quotation preparation.
Factory-Direct Supply
As a China-based lighting manufacturer, Topsund offers flexible MOQ, competitive pricing, stable production, and fast delivery for international B2B projects.
Need a 48V Magnetic Track Solution for Your Project?
Contact Topsund to request samples, product specifications, catalog files, or a project quotation for your magnetic track lighting system.
LIGHTING MODULE OPTIONS
48V Magnetic Track
Lighting Modules
A 48V magnetic track lighting system can support different lighting modules on the same track platform. Designers and integrators can combine spotlights, linear lights, grille lights, wallwashers, and pendant modules to create layered lighting for residential and commercial interiors.
Each module serves a different lighting purpose. Spotlights are used for accent lighting, linear modules provide general illumination, wallwashers highlight vertical surfaces, grille lights deliver low-glare focused lighting, and pendant modules add decorative or task lighting above tables, kitchen islands, and reception areas.
Magnetic Spotlights
Adjustable spotlights are ideal for accent lighting, artwork, display shelves, feature walls, and focused residential lighting scenes.
Linear Light Modules
Linear modules provide clean, continuous general lighting for living rooms, corridors, kitchens, offices, and modern architectural interiors.
Grille Light Modules
Grille lights provide low-glare focused illumination for villas, hotels, lounges, and premium residential spaces.
Pendant light modules
Pendant modules add decorative and task lighting for dining tables, kitchen islands, counters, and reception areas.
Wallwasher Modules
Wallwasher modules create soft vertical illumination for walls, wardrobes, galleries, showrooms, and decorative architectural surfaces.
By combining different lighting modules on one 48V magnetic track
Designers can create ambient lighting, accent lighting, wall washing, task lighting, and decorative lighting within one flexible system.
CONTROL & DIMMING OPTIONS
Control & Dimming Options
Before choosing the control method, confirm:
Driver version / Wiring method / Gateway or interface / Module selection
Topsund 48V magnetic track lighting can be planned with different control and dimming methods according to the project requirements, selected lighting modules, driver version, wiring method, gateway, and system layout.
The system can be configured for simple switching, 0-10V dimming, DALI, KNX via DALI gateway, Casambi, or Zigbee when the selected driver, module version, wiring method, gateway, pairing method, and project requirements are confirmed.
Basic On/Off
Basic On/Off
For projects where dimming, app control, or scene control is not required. The system works with standard switching according to the selected power supply and wiring plan.
0-10V
0-10V Dimming
For wired analogue dimming projects. The setup should be confirmed according to the selected 0-10V driver, control interface, wiring method, and connected load.
DALI
DALI Control
For professional wired dimming, grouping, scene control, and lighting management when the selected module, driver, and wiring plan support the required DALI setup.
KNX
KNX via DALI Gateway
For smart villas and whole-home automation projects. KNX control is normally planned through a KNX-DALI gateway or another confirmed interface.
Casambi
Casambi Control
A wireless professional control option for renovation projects, showrooms, and smart interiors requiring app control, grouping, and flexible scenes.
Zigbee
Zigbee Lighting Control
A wireless smart lighting option for residential scenes and connected home applications when the selected driver, gateway, and pairing method are confirmed.
The real advantage is matching flexible magnetic lighting modules with the right control and dimming method for each project.
Topsund can review the project layout, driver type, gateway or interface, wiring method, and module selection before quotation.
SAMPLE KIT
Test the 48V System Before Project Specification
A 48V magnetic track sample kit helps lighting designers, smart home integrators, distributors, and project contractors evaluate the system before project specification. Customers can test the track structure, magnetic module handling, spotlight beam effect, linear ambient lighting, wallwasher direction, and basic control planning with a compact sample setup.
SAMPLE CONTENT
Starter Sample Kit
- M20 track
- SD-10048 in-track power supply
- CFC1035 compact spot
- CFC1045 standard spot
- MS600 linear module
SAMPLE POWER
Power Setup
SD-10048 is intended for short-track sample testing under 100W total connected load. With this in-track power supply setup, Feed In SD-562 is not required.
For longer track layouts, higher sample wattage, or a different driver/control setup, the sample kit can be planned with an external 48V power supply. In that case, Feed In SD-562 is used for track power input.
Topsund can also review add-on modules such as zoom spots, dots / grille modules, wallwashers, pendant modules, and selected connectors according to the sample layout.
PROJECT APPLICATIONS
48V Magnetic Track Lighting Applications
Topsund 48V magnetic track lighting is suitable for residential and commercial projects that require flexible lighting layouts, clean ceiling integration, and coordinated control and dimming planning.
By combining spotlights, linear lights, grille modules, wallwashers, and pendant modules on one track platform, designers can create lighting layers for general lighting, accent lighting, wall washing, task lighting, and decorative lighting.
Residential
Villas & Luxury Homes
Create clean ceiling lines, flexible lighting scenes, and refined architectural lighting layers for high-end residential projects.
Residential
Apartments
Use recessed or surface-mounted magnetic track lighting to support flexible layouts for living rooms, kitchens, bedrooms, corridors, and open-plan interiors.
Automation
Smart Home Projects
Plan scene-based residential automation when the selected driver, gateway, wiring method, and commissioning requirements support the required control setup.
Display
Showrooms
Use adjustable spotlights, wallwashers, and linear modules to highlight products, materials, display walls, and customer experience areas.
Hospitality
Hotels & Hospitality
Create comfortable ambient lighting, focused accent lighting, and premium architectural ceiling details for guest rooms, lounges, corridors, and public areas.
Commercial
Retail & Commercial Interiors
Support flexible product displays, changing layouts, low-glare accent lighting, and clean modern interior design.
For project-based lighting design, the value of a 48V magnetic track system is flexibility.
One track platform can support different lighting modules, installation methods, and control strategies when the selected modules, drivers, wiring method, and project requirements are confirmed.
TECHNICAL FAQ
48V Magnetic Track Lighting FAQ
Find answers to common questions about compatibility, installation, smart control, cost, images, and samples for residential and architectural projects.
Compatibility
Installation & Ceiling
Smart Control
Cost, Images & Samples
Need help selecting the right 48V magnetic track solution?
Contact Topsund for project recommendations, samples, technical specifications, and quotation support.
